1_ ISUZU-VC61- 6×4-Pump Truck Chassis
| Vehicle Model: | 5350THBW1 SDZY | |
|
Chassis Parameters |
Chassis Dimension(L x W
x H) |
1 01 30×2540×3055mm |
| Curb Weight: | 9400Kg | |
| GVW: | 35000Kg | |
| Wheelbase: | 4800+1 370mm | |
| Drive Type: | 6×4 | |
|
Engine |
Engine Model: | 6WG1 -TCG52 |
| Engine Power: | 309Kw | |
| Displacement: | 1 5681 ml | |
| Horsepower: | 420Ps | |
|
Transmission |
Transmission: | ZF8S2030T0 |
| Forward Gear: | 8 Speed Gear | |
| Backward Gear: | 2 Speed Gear | |
| Seats | Front Seat: | 2 |
|
Chassis |
Front Wheel Distance: | 21 42mm |
| Rear Wheel Distance: | 1 855/1 855mm | |
| Front/Rear Suspension | 1 370/2590mm | |
| Axle Loads: | 9000/1 3000/1 3000kg | |
| Approach/Departure
Angle: |
1 7/1 8° | |
| Leaf Spring: | 8/1 0pcs | |
| Rear Axle Ratio: | 5.571 | |
| Tires: | 1 1 (Including spare tire) | |
| Tire Model: | 31 5/80R22 5 20PR | |
| Fuel Tank Capacity: | 400L | |
|
Standard Configuration |
1 | Power steering system |
| 2 | Air Conditioning | |
| 3 | Tubeless Tire | |
| 4 | ABS | |
| 5 | Free Maintenance Battery | |
| 6 | Central Lock | |
| 7 | Power Window | |
| 8 | Driving Data Recorder | |
| 1 | Front Chrome Kit | |
| 2 | Aluminum alloy rim | |
| 3 | Aluminum alloy gas tank | |
| 4 | Cab metal paint | |
| 5 | Remote key | |
| Optional Configuration: | 6 | Hydraulic retarder |
| 7 | Air Suspension Cabin | |
| 8 | Air suspension Seat |
Notes: Above specs is for reference, any other specs needed, or special requirements, can be discussed accordingly.

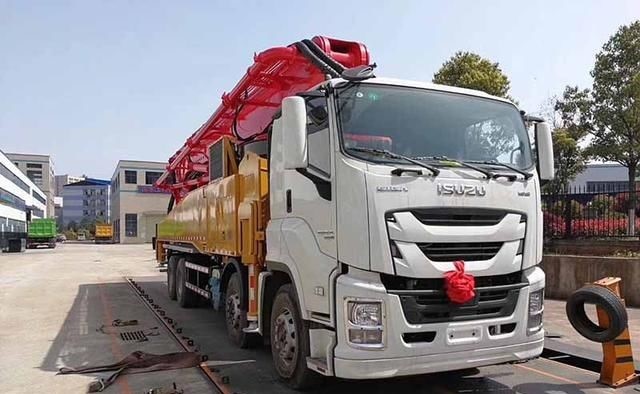

Photo For Reference:
