4_VC61-QL5330TZZU1VDZY 6×4 Wingvan Truck

Short Description:


Product Detail

Product Tags

ISUZU VC61 GIGA Wingvan Truck(Euro V)

Vehicle Model:

QL5330TZZU1VDZY

Overall Dimension(L x W x H)

12000x2550x4000mm

Curb Weight:

15500Kg

Vehicle Parameters

GVW:

33000Kg

Wheelbase:

5820+1370mm

Drive Type:

6×4

Engine Model:

6UZ1-TCG50

Engine

Engine Power:

279Kw

Delivery Capacity:

9839ml

Horsepower:

380Ps

Transmission:

ZF8S2030TO

Transmission

Forword Gear:

8 Speed Gear

Backward Gear:

2 Speed Gear

Seats

Front Seat:

2

Front Wheel Distance:

2065mm

Rear Wheel Distance:

1855/1855mm

Chassis

Axle Loads:

Three Axles

Rear Axle Ratio:

4.555(Optional)

Tires:

11(including spare tire)

Tire Model:

295/80R22.5 18PR

1

Power Steering

2

AC

3

Tubeless Tire

Standard Configuration:

4

ABS

5

Free Maintenance Battery

6

Central Lock

7

Power Window

8

Data Recorder

9

Air Suspension Seat

10

Air Suspension Cabin

Box Dimension:

9800x2550x3960mm

Top Parameters

Material:

Aluminium Alloy

Floor Material:

Wood

FOB Shanghai Price:(Validity:15days)

Notes: Above specs is for reference, any otherspecs needed, or special requirements, can be discussed accordingly.

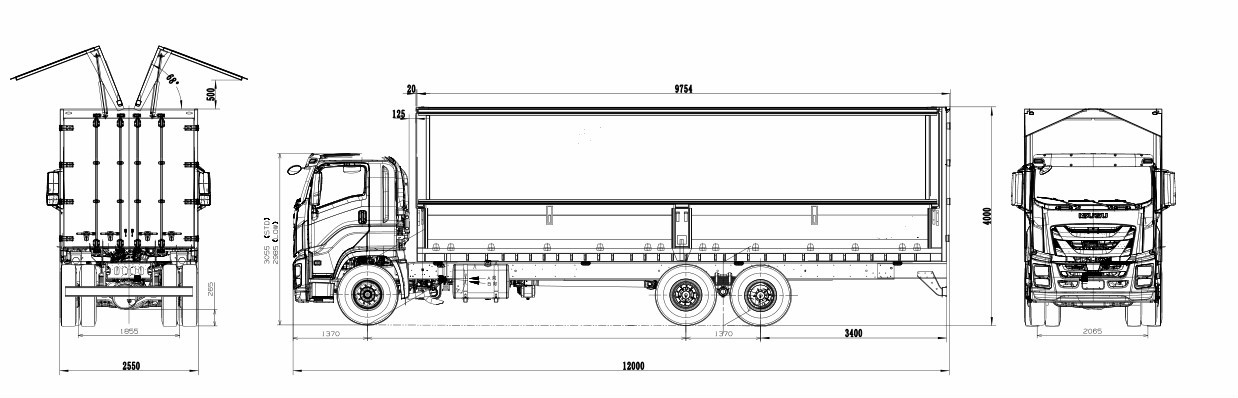

Photo for reference:

ISUZU VC61 GIGA Wingvan Truck1

ISUZU VC61 GIGA Wingvan Truck
