| Technical Specification |

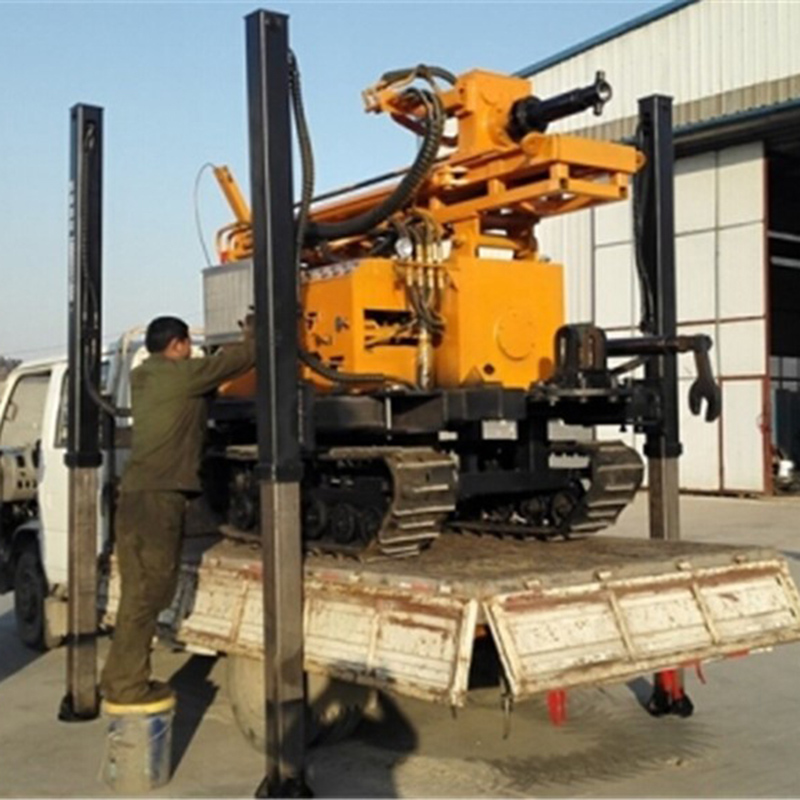

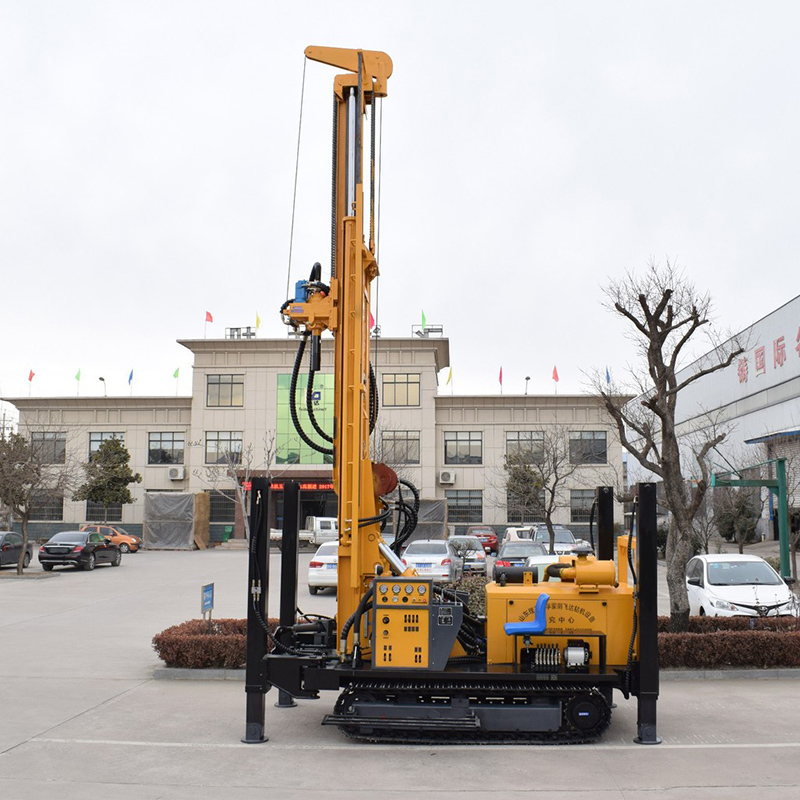

| Drill rig |
| The hole diameter(mm) |
100-300 |
| Drilling depth(m) |
260 |
| Once-time advance length(mm) |
3000 |
| Walking speed(km/h) |
2.5~3.5 |
| Climbing angles(Max.) |
30 |
| Minimum ground clearance(mm) |
250 |
| Using air pressure(Mpa) |
1.7-3.5 |
| Air consumption(m3/min) |
17-31 |
| Equipped capacitor(Kw) |
76 |
| Swing speed(rpm) |
55-115 |
| Swing torque(N.m) |
8660-11150 |
| Drill pipe diameter(mm) |
0)89 |
| Drill pipe length(m) |
6 |
| Rig lifting force(T) |
20 |
| Drill rig weight(T) |
6.4 |
| Dimensions(mm) |
4100*1900*2800 |
| High support leg |
YES |
| Air compressor |
| Compresor working pressure |
24bar |
| Compresor Capacity |
29m3/min(1024cfm) |
| Power(HP) |
400 |
| Weight(kg) |
4700 |
| Dimensions(mm) |
3950*2000*2300 |
