Spec for water drilling machine tractor TYPE
This product is a product of our company and the 2005 water well drilling through South Korean technology introduction, and has been continuously innovated and perfected by our company in the 7 years of practical production. This product has wireless remote control operation, four-corner hydraulic balance and automatic loading and unloading drilling rig, the drill pipe is fast and high-speed, the bottom frame shifting realizes the center dislocation and facilitates the lowering of the protective tube, and has the advantages of convenient maintenance at a later stage and low maintenance cost, which is deeply affected by actual production.
The majority of new and old customers praise.
Specification:
| Maximum opening depth | 200 meter |
| Drilling diameter | 100-219 mm |
| Working pressure | 1-3.45MP |
| Total air consumption | 16-55 cubic meters / minute |
| Drill pipe length | 1.5meter/unit |
| Drill pipe diameter | 76mm |
| Axial pressure | 2 Tons |
| Lifting force | 5 Tons |
| Swing torque | 1000–2600nm |
| Swing speed | 0-100 turn |
| Walking speed | 30km/h |
| Gradeability | 21° |
| Overall size | 4000*1900*2200mm |
| Main machine weight | 3.5Tons |
Quotation for all in one set
| Item | Model | Quantity | Unit price CIF USD | Total price CIF USD |
| Main machine Diesel power |
Z-WCTL180 | 1 | 18,500 | 18,500 |
| Drill pipe | 76*6*1500 | 180meter | 52/meter | 9,360 |
| Impactor | HD45A | 1 | 1,250 | 1,250 |
| Drill head | 115mm | 1 | 860 | 860 |
| High pressure duct | 51*3P | 40meter | 30/meter | 1,200 |
| Air compressor Diesel power |
18/20 | 1 | 38,500 | 38,500 |

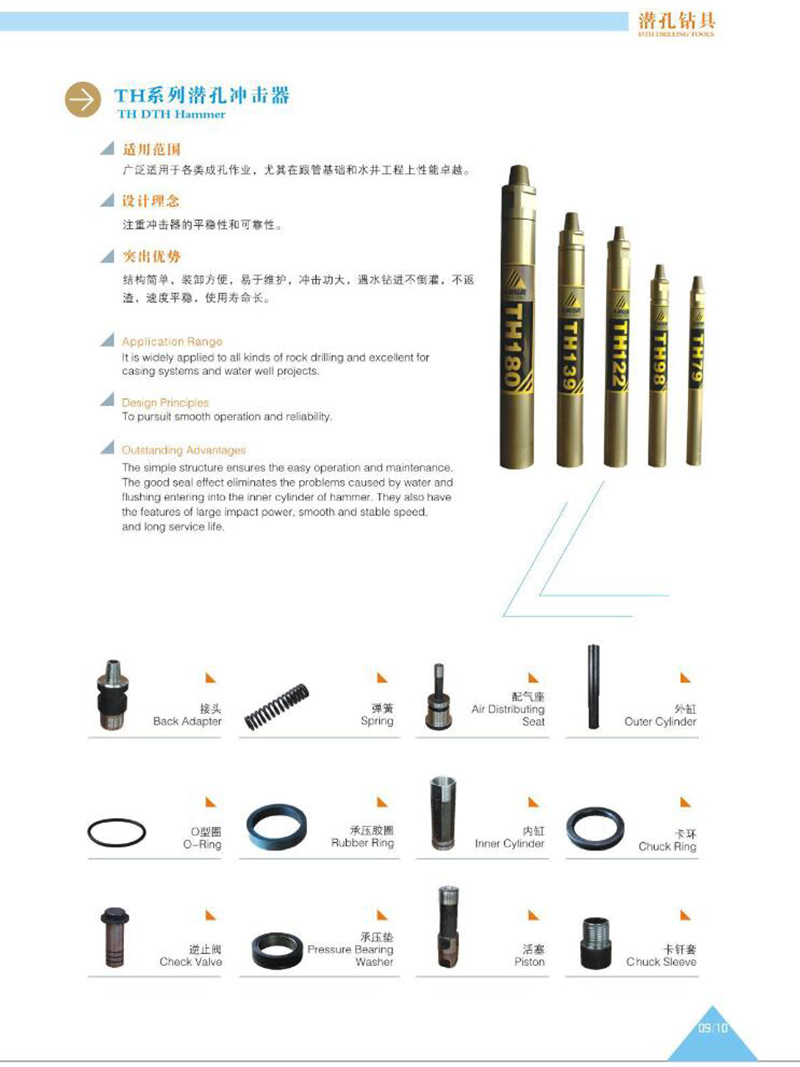

Drill Tools

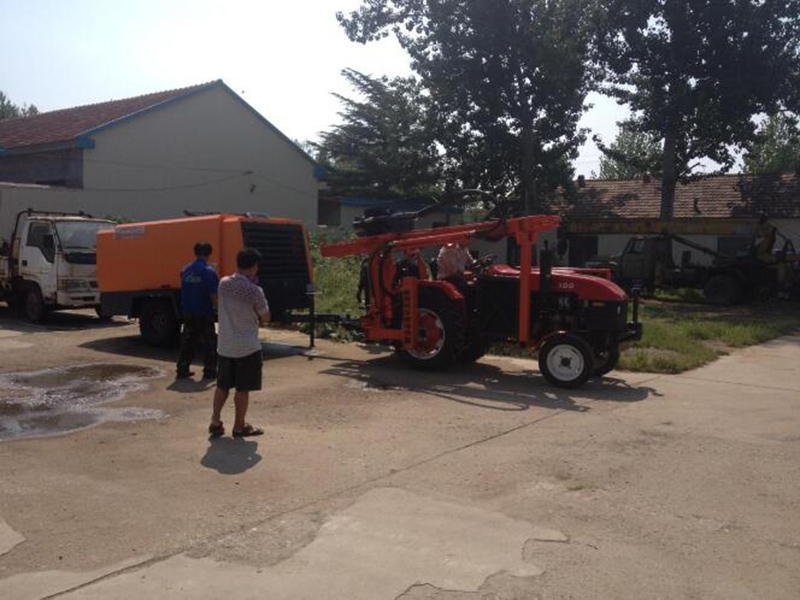

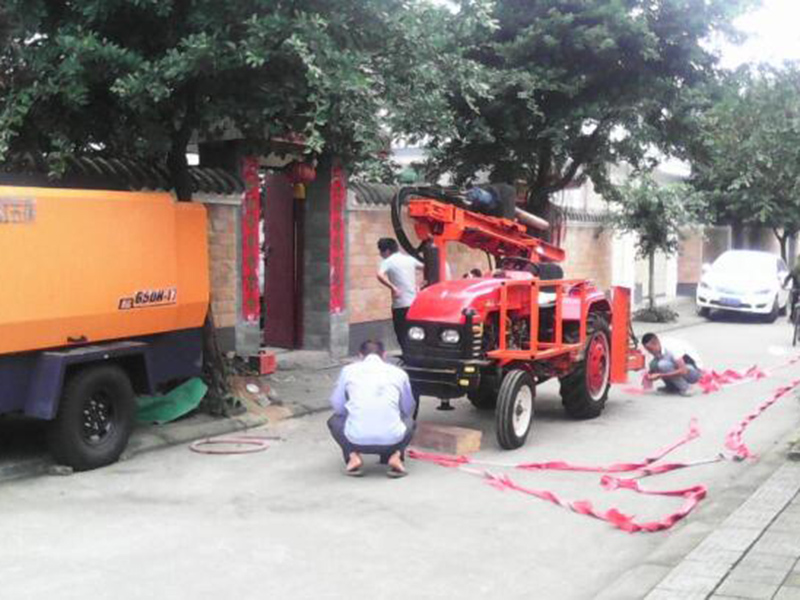

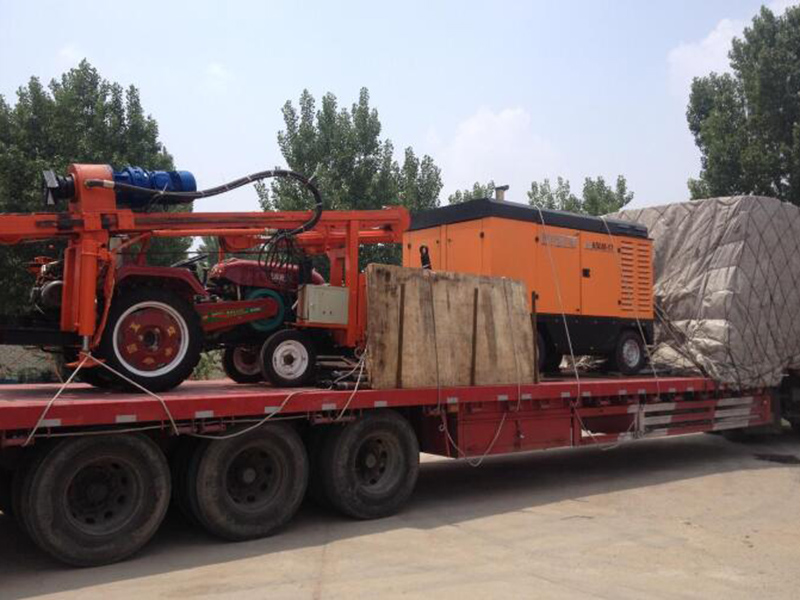

Transport and Construction Site
