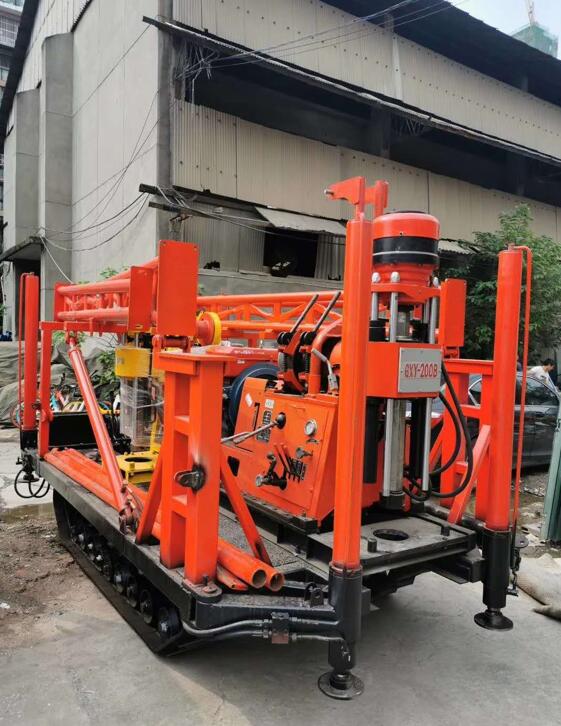

Bentoni water drilling rig
GXY-2 Bentoni water drilling rig is mainly used for core drilling, project site survey, hydrology, water well and micro drilling rig construction. It has a large number of speed stages and a reasonable speed range. The drilling rig has high power, small size, light weight and strong versatility.
| Technical data |
| drilling depth ： 300~600m |
| drill pipe diameter ： ф42 mm; ф50mm |
| Drilling hole angle ： 360° |
| drilling machine size： （l×w×h）2160×950×1800mm |
| weight： （without engine）1280kgs |
| Gyrator |
| Vertical shaft speed: |
| Positive low speed： 70；121；190；263r/min |
| high speed： 329；570；899；1241r/min |
| Reverse low speed： 55 r/min |
| high speed： 257 r/min |
| Vertical axis travel： 600mm |
| Vertical axis rated pullout force： 72KN |
| Vertical axis rated plus pressure： 54KN |
| Vertical axis Inner diameter： ф68mm |
| Vertical axis Large torque： 2760N·M |
| windlass |
| max lifting capacity （low speed single rope ）： 30KN |
| Speed： 37；65；103；141 r/min |
| lifting speed（single wire ）： 0.41；0.73；1.15；1.58m/s |
| wire size： ф16mm |
| Wire Rope Capacity： 50m |
| mobile device |
| mobile cylinder travel 465mm |
| the distance to hole opeing 315mm |
